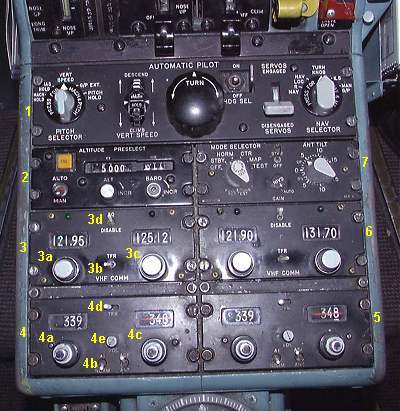

Aft control pedestal.
APS. Altitude preselect panel.
3. VHF com1 panel.
3a. AKTIVE frequency selector/readout.
3b. Transfer switch.
3c. STANDBY frequency selector/readout.
3d. Squelch ON/OFF.
4. ADF1 panel, red needle.
4a. AKTIVE frequency selector/readout.
4b. A1/NORM switch.
4c. STANDBY frequency selector/readout.
4d. Transfer switch.
4e. Volume control.
5. ADF2 panel.
6. VHF com2 panel.
7. Weather radar panel.

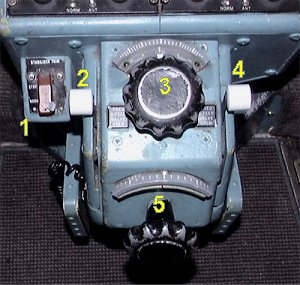

1. STABILIZER TRIM STOP SWITCH.
In STOP position brake is applied to stop a stabilizer runaway condition.
2. LEFT PNUMATIC CROSSFEED LEVER.
Position UP = OPEN (picture). Permits crossfeeding of air between the two pneumatic systems. Also to air condition and/or ice protection system as well as from the APU air system.
3. RUDDER TRIM KNOB.
Actuates the rudder load feel unit. During power operation the complete rudder surface is displaced. During manual operation the rudder control tab is displaced.
4. RIGHT PNUMATIC CROSSFEED LEVER.
Position UP = OPEN (picture).
5. AILERON TRIM KNOB.
Actuates the aileron trim tabs.
