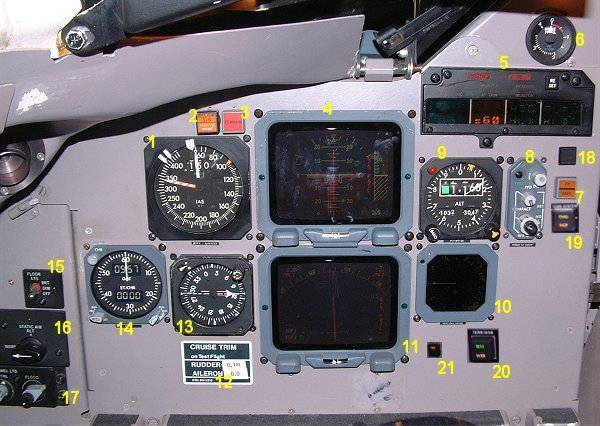

- 1. MACH/IAS INDICATOR.
-
- 2. BELOW G/S light and reset switch.
- Light comes on to indicate a penetration of glide slope alert
envelope during an ILS approach.
- 3. TERRAIN warning light.
- Light comes on to indicate penetration of warning envelopes
in the GPWS system.
- 4. PFD (Primary Flight Display).
-
- 5. FMA (Flight Mode Annunciator)..
-
- 6. BRAKE PRESSURE GAUGE.
- Indicates L/R brake system hydraulic pressure
- 7. FD(Flight Director) LIGHT.
- Comes on to indicate that the FD CMD selector on the overhead
panel is out of its NORM position.
- 8. DIMMING PANEL..
-
- 9. PRIMARY ALTIMETER..
-
- 10. VSI (Vertical Speed Instrument)..
-
- 11. NAVIGATION DISPLAY.
-
- 12. CRIUSE TRIM placard.
- The settings of rudder and aileron trim knobs from latest test flight.
- 13. COMPASS INDICATOR RMI.
- Shows direction to VORI and VORII. On A/C with IRS also
DME
- 14. DIGITAL CLOCK.
-
- 15. FLOOR LIGHT switch.
- Will give light on the pedals below the panel. Used to search for
foreign objects on the floor.
- 16. STATIC AIR SELECTOR.
- Selects NORM or ALT static air pressure source to the CADC (Central
Air Data Computer).
- 17. LIGHT SWITCHES for left pilot instruments.
- 18. CARGO FIRE/SMOKE DETECTOR LOOP light.
- RED upper part comes on when cargo fire is detected. AMBER lower
light comes on when a fire detector loop fault is detected.
- 19. TERR SYSTEM OVRD/INOP switch/light.
- A combination of a light (INOP) that indicates that the terrain
warning system is inoperative. When the light is pressed it function
as an on/off switch to the terrain warning system. The light is covered
by a hinged transparent guard.
- 20. TERR/WXR switch.
- Provides manual selection/deselection of the EGPWS terrain display.
- 21. MAG/TRU ANNUNCIATOR/SWITCH.
- MAG - all compass cards referenced to magnetic north. TRU -
ND compass card is referenced to true north.
|
